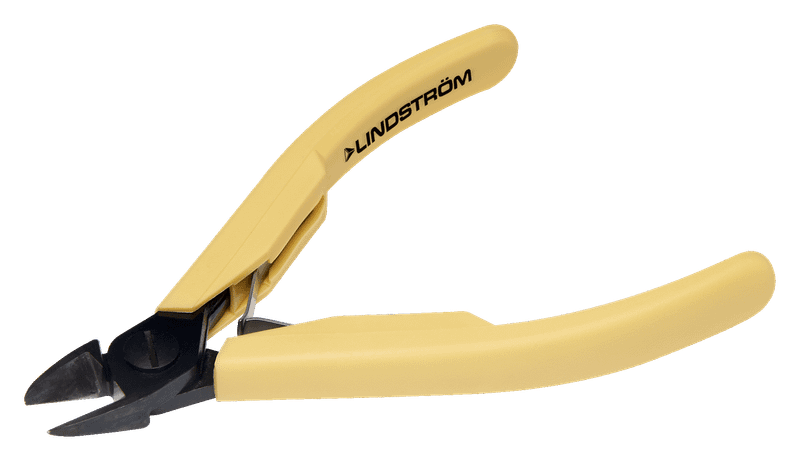

Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head & ESD Safe Handle 0.3-1.6 mm

ESD-SAFE
$106.00
Mfr Part No8162
SKU59-8162
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for wire harness work and standard printed circuit board assembly
  • High performance alloy steel
  • Exacting induction hardened cutting edges 63–65 HRC
  • ESD safe mono material handles in synthetic material with leaf springs
  • Precision screw joint that minimizes friction and maximizes alignment of cutting edges
  • Cutting capacity is listed for solid copper wire
  • Phosphated finish

Specifications

Cutting
Head typeOval
Cut resultUltra-Flush®
Cutting capacity0.3–1.6 mm
Material, ESD & Origin
ResistivityDissipative
HandleStandard
Country of originSpain
Dimensions & Weight
Length125 mm / 4.92 in
Head height16 mm / 0.63 in
Head width16 mm / 0.63 in
Head thickness8 mm / 0.31 in
Head sizeL
Tip width1.6 mm / 0.06 in
Weight97 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-8162 (current) Ultra-Flush® L 0.3–1.6 mm ✓
59-8130 Micro-Bevel® XS 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-8131 Flush XS 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-8132 Ultra-Flush® XS 0.1–0.8 mm / 0.004–0.03 in ✓ View →
59-8140 Micro-Bevel® S 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-8141 Flush S 0.1–1.25 mm / 0.004–0.05 in ✓ View →
59-8142 Ultra-Flush® S 0.1–1.0 mm / 0.004–0.04 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Handle Material Data Sheet Warranty Statement
