Lindström

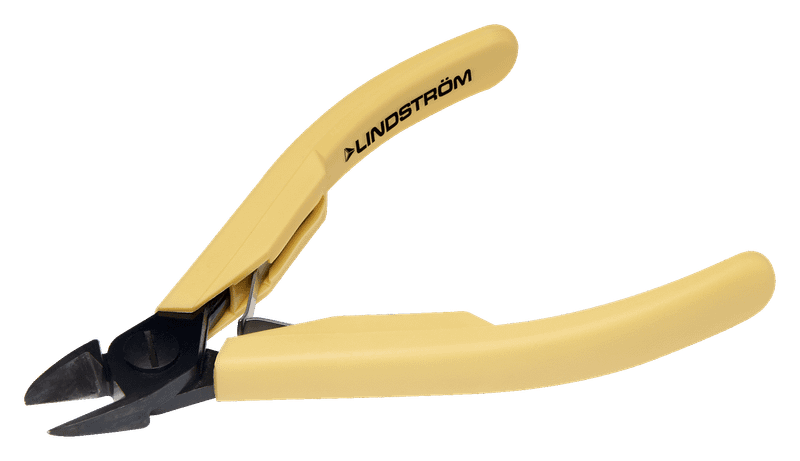

Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head & ESD Safe Handle 0.1-1 mm

ESD-SAFE
$80.98
Was $85.25
You Save:
$4 5% off
Mfr Part No8142
SKU59-8142
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for wire harness work and standard printed circuit board assembly
  • High performance alloy steel
  • Exacting induction hardened cutting edges 63–65 HRC
  • ESD safe mono material handles in synthetic material with leaf springs
  • Precision screw joint that minimizes friction and maximizes alignment of cutting edges
  • Cutting capacity is listed for solid copper wire
  • Phosphated finish

Specifications

Cutting
Head typeOval
Cut resultUltra-Flush®
Cutting capacity0.1–1.0 mm / 0.004–0.04 in
Material, ESD & Origin
ResistivityDissipative
HandleStandard
Country of originSpain
Dimensions & Weight
Length110 mm / 4.33 in
Head height10.5 mm / 0.41 in
Head width10 mm / 0.39 in
Head thickness6 mm / 0.24 in
Head sizeS
Tip width0.8 mm / 0.03 in
Weight70 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-8142 (current) Ultra-Flush® S 0.1–1.0 mm / 0.004–0.04 in ✓
59-8130 Micro-Bevel® XS 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-8131 Flush XS 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-8132 Ultra-Flush® XS 0.1–0.8 mm / 0.004–0.03 in ✓ View →
59-8140 Micro-Bevel® S 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-8141 Flush S 0.1–1.25 mm / 0.004–0.05 in ✓ View →
59-8150 Micro-Bevel® M 0.3–1.6 mm / 0.01–0.06 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Handle Material Data Sheet Warranty Statement
