Lindström

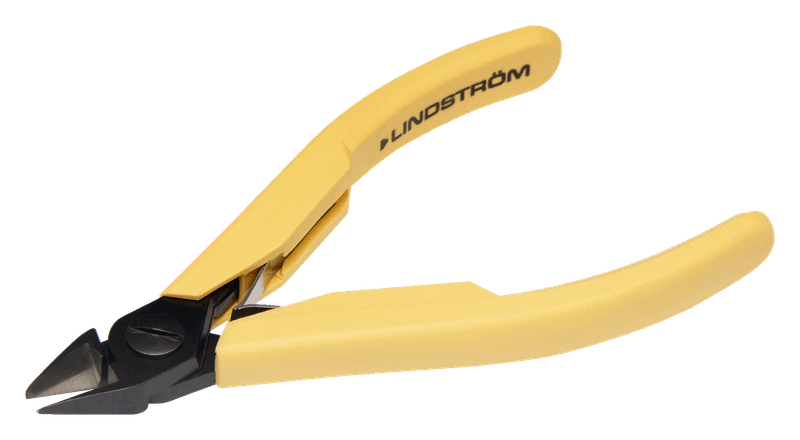

Micro-Bevel® Precision Cut Diagonal Cutter with Tapered Head & ESD Safe Handle 0.2-1.25 mm

ESD-SAFE
$77.00
Mfr Part No8143
SKU59-8143
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for assembly work where accessibility is a consideration
  • Material: High performance alloy steel
  • Exacting induction hardened edges 63–65 HRC
  • ESD safe handles in synthetic material with leaf springs
  • Precision screw joint minimizes friction and maximizes alignment of cutting edges
  • Cutting capacity is listed for solid copper wire

Specifications

Cutting
Head typeTapered
Cut resultMicro-Bevel®
Cutting capacity0.2–1.25 mm / 0.01–0.05 in
Material, ESD & Origin
ResistivityDissipative
HandleStandard
Country of originSpain
Dimensions & Weight
Length110 mm / 4.33 in
Head height10.5 mm / 0.41 in
Head width8 mm
Head thickness6 mm / 0.24 in
Head sizeS
Tip width0.8 mm / 0.03 in
Weight46 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-8143 (current) Micro-Bevel® S 0.2–1.25 mm / 0.01–0.05 in ✓
59-8144 Flush S 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-8145 Ultra-Flush® S 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-8153 Micro-Bevel® M 0.3–1.6 mm / 0.01–0.06 in ✓ View →
59-8154 Flush M 0.2–1.6 mm / 0.01–0.06 in ✓ View →
59-8155 Ultra-Flush® M 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-8163 Micro-Bevel® L 0.4–2.0 mm / 0.02–0.08 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Handle Material Data Sheet Warranty Statement
