Lindström

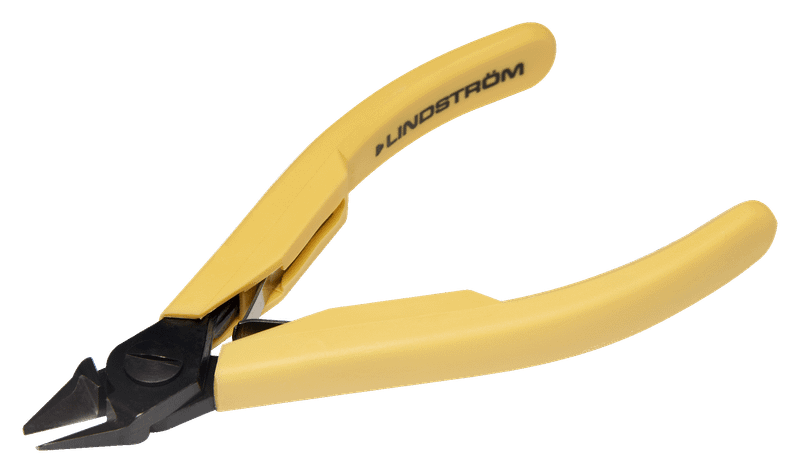

Flush Precision Cut Diagonal Cutter with Tapered & Relieved Head & ESD Safe Handle 0.1-1 mm

ESD-SAFE
$80.25
Mfr Part NoBAH8147
SKU59-BAH8147
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Material: High performance alloy steel
  • Exacting induction hardened edges 63–65 HRC
  • ESD safe handles in synthetic material with leaf springs
  • Precision screw joint that minimizes friction and maximizes alignment of cutting edges
  • Cutting capacity is listed for solid copper wire

Specifications

Cutting
Head typeTapered & Relieved
Cut resultFlush
Cutting capacity0.1–1.0 mm / 0.01–0.04 in
Material, ESD & Origin
ResistivityDissipative
HandleStandard
Country of originSpain
Dimensions & Weight
Length110.5 mm
Head height10 mm / 0.39 in
Head width10 mm / 0.39 in
Head thickness6 mm / 0.24 in
Head sizeS
Tip width0.8 mm / 0.03 in
Weight46 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-BAH8147 (current) Flush S 0.1–1.0 mm / 0.01–0.04 in ✓
59-8167L_ Flush L 0.3–1.5 mm / 0.01–0.06 in ✓ View →
59-BAH8156 Micro-Bevel® M 0.3–1.25 mm / 0.01–0.05 in ✓ View →
59-BAH8157 Flush M 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-BAH8158 Ultra-Flush® M 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-BAH8168 Ultra-Flush® L 0.3–1.25 mm / 0.01–0.05 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Handle Material Data Sheet Warranty Statement
