Lindström

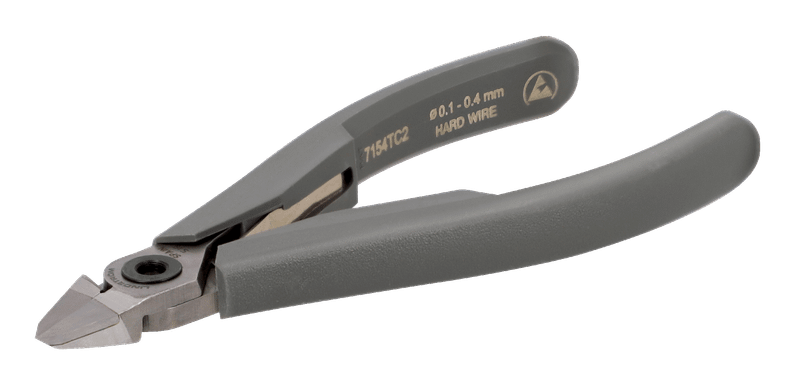

Flush Precision Cut Carbide Diagonal Cutter with Tapered and Relieved Head for Hard Materials 0.1-0.4 mm / 0.004-0.2 in

ESD-SAFE
$202.50
Mfr Part No7154TC2
SKU59-7154TC2
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Carbide Insert Cutters suitable for hard wire materials such as Nitinol, Stainless Steel, Platinum and Titanium
  • High performance alloy steel material provides strength and reliability
  • Precision lap joint with screw minimizes friction while maximizing cutting edge and tip alignment
  • ESD Safe, comfortable synthetic handles with return spring for smooth operation
  • Polished, natural finish provides protection against oxidation
  • Cutting capacity hard wire from 0.1 mm to 0.4 mm / 0.004 in - 0.02 in

Specifications

Cutting
Head typeTapered & Relieved
Cut resultFlush
Material, ESD & Origin
HandleStandard
Country of originSpain
Dimensions & Weight
Length112.5 mm / 4.43 in
Head height13 mm / 0.51 in
Head width12.5 mm / 0.49 in
Head thickness6 mm / 0.24 in
Head sizeM
Tip width2 mm / 0.08 in
Weight50 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-7154TC2 (current) Flush M ✓
59-RX8157 Flush M 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-RX-8147 Flush S 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-BAH8147 Flush S 0.1–1.0 mm / 0.01–0.04 in ✓ View →
59-BAH8157 Flush M 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-RX8137 Flush XS 0.1–0.8 mm / 0.004–0.03 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Warranty Statement
