Lindström

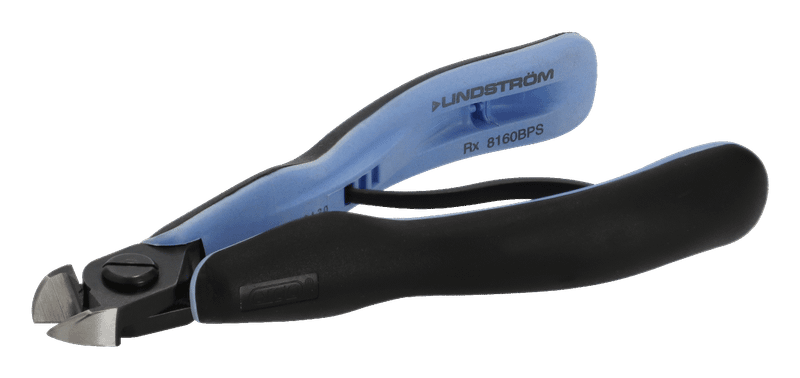

ERGO™ Precision Micro Cut Diagonal Cutter with Robust Oval Head & ESD Safe Handle for hard materials, 147 mm

ESD-SAFE
$138.50
Mfr Part NoRX8160BPS
SKU59-RX8160BPS
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Products designed to get the most precise cut on guidewires, catheter coil wires and cardiology and urology stents
  • Hard wire cutters can be used on single or multiple filars and for lateral or internal cuts
  • Sharp and fully aligned edges
  • Material: High performance alloy steel
  • Precision induction hardened cutting edges 63-65 HRC
  • Screw joint minimizes friction and maximizes alignment of cutting edges
  • ESD safe handles in synthetic material with return spring
  • Numerically controlled machine grinding guarantees edge angle accuracy and contact, increasing the tools reliability and consistency
  • Phosphated finish

Specifications

Cutting
Head typeOval
Cut resultMicro-Bevel®
Cutting capacity0.1–1.0 mm / 0.01–0.04 in
Material, ESD & Origin
HandleErgo
Country of originSpain
Dimensions & Weight
Length147 mm / 5.8 in
Head height16 mm / 0.63 in
Head width16 mm / 0.63 in
Head thickness8 mm / 0.31 in
Head sizeL
Weight97 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-RX8160BPS (current) Micro-Bevel® L 0.1–1.0 mm / 0.01–0.04 in ✓
59-RX 8151BPS Flush M 0.1–1.6 mm / 0.04–0.063 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Installation & Care Warranty Statement
