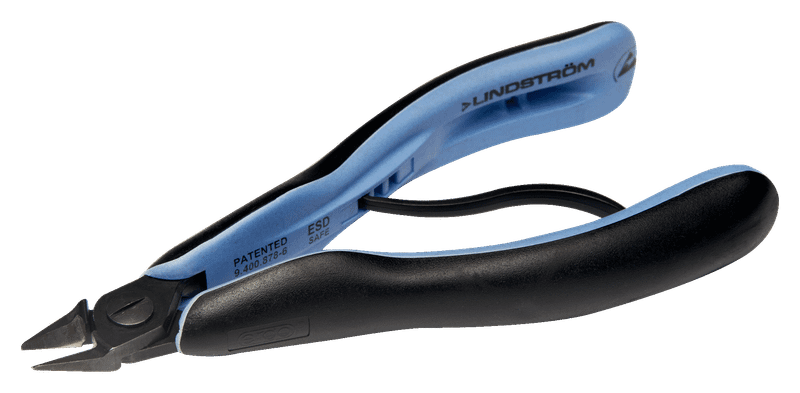

Ergo™ Micro-Bevel® Precision Cut Diagonal Cutter with Tapered & Relieved Head 0.2-1 mm

ESD-SAFE
$101.00
Mfr Part NoRX-8146
SKU59-RX-8146
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for use in confined spaces and for rework
  • Two-component Ergo™ handles: thermoplastic surface on tough polypropylene provides superior grip
  • Material: High performance alloy steel
  • Precision induction hardened cutting edges to 63–65 HRC
  • ESD safe handles in 2-component synthetic material
  • Micro-Touch™: The shape of the handles makes it possible to control and rotate the pliers between thumb and index finger for precision work
  • Precision screw joint that minimizes friction and maximizes alignment of cutting edges
  • Biospring® reduces tension throughout the working cycle of the tool and can be adjusted in three different positions
  • Cutting capacity is listed for solid copper wire
  • Phosphated finish

Specifications

Cutting
Head typeTapered & Relieved
Cut resultMicro-Bevel®
Cutting capacity0.2–1.0 mm / 0.01–0.04 in
Material, ESD & Origin
ResistivityDissipative
HandleErgo
Country of originSpain
Dimensions & Weight
Length135.5 mm
Head height10.5 mm / 0.41 in
Head width10 mm / 0.39 in
Head thickness6 mm / 0.24 in
Head sizeS
Tip width0.8 mm / 0.03 in
Weight68 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-RX-8146 (current) Micro-Bevel® S 0.2–1.0 mm / 0.01–0.04 in ✓
59-8146 Micro-Bevel® S 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-RX-8147 Flush S 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-RX-8148 Ultra-Flush® S 0.1–0.8 mm / 0.004–0.03 in ✓ View →
59-RX-8158 Ultra-Flush® M 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-RX8137 Flush XS 0.1–0.8 mm / 0.004–0.03 in ✓ View →
59-RX8156 Micro-Bevel® M 0.3–1.25 mm / 0.01–0.05 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Installation & Care Warranty Statement
