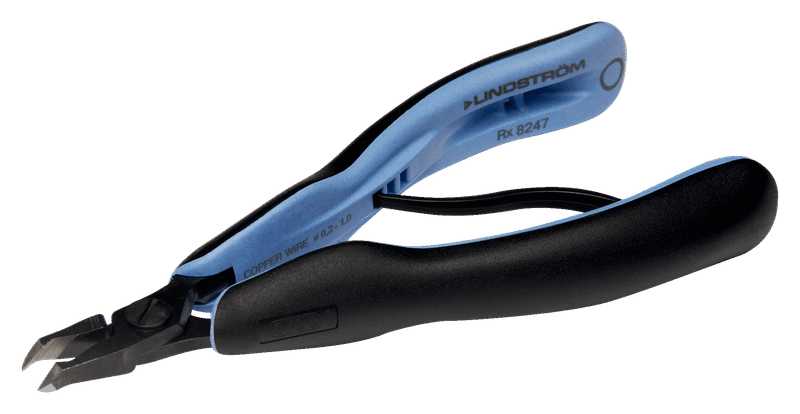

Name: Ergo™ Long Flush Precision Cut 45° Angle Tapered Head Oblique Cutter 0.2 mm-1 mm
Brand: Lindström
SKU: 59-RX8247
Price: 177 USD
Availability: InStock

Overview

Ideal for assembly work where accessibility is a consideration
Developed according to the ERGO® process for a comfortable and effective grip in all situations
Material: High performance alloy steel
Precision induction hardened edges 63–65 HRC
ESD safe handles in 2-component synthetic material
Precision screw joint that minimizes friction and maximizes alignment of cutting edges
Biospring® reduces tension throughout the working cycle of the tool and can be adjusted in three different positions
Cutting capacity is listed for solid copper wire
Burnished finish

Specifications

Cutting
Head type	Angle 45°
Cut result	Flush
Cutting capacity	0.2–1.0 mm / 0.01–0.04 in

Material, ESD & Origin
Resistivity	Dissipative
Handle	Ergo
Country of origin	Spain

Dimensions & Weight
Length	143 mm / 5.63 in
Head height	18 mm / 0.71 in
Head width	10 mm / 0.39 in
Head thickness	6 mm / 0.24 in
Head size	S
Weight	72 g

In this series

Each model in this series is its own page.

Model	Cut result	Head size	Cutting capacity	ESD	View →
59-RX8247 (current)	Flush	S	0.2–1.0 mm / 0.01–0.04 in	✓
59-8247				✓	View →
59-HS-8247	Flush	L	0.2–1.0 mm / 0.01–0.04 in	✓	View →
