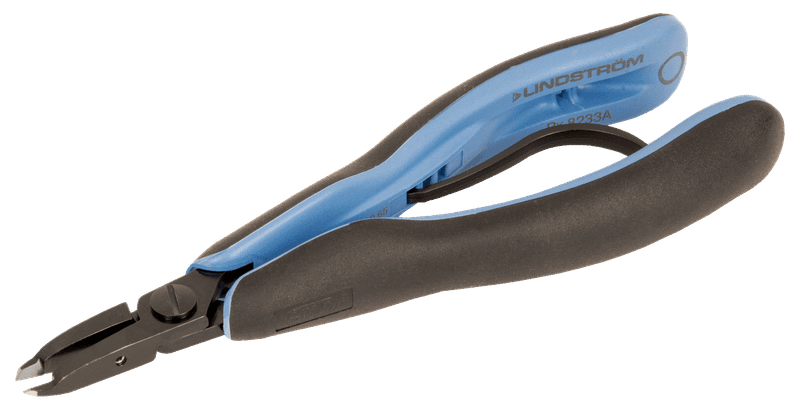

Ergo™ Flush Precision Cut Micro Tip Cutter 149 mm

ESD-SAFE
$160.00
Mfr Part NoRX8233A
SKU59-RX8233A
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for rework and close fine pitch Applications
  • Developed according to the ERGO® process for a comfortable and effective grip in all situations
  • Material: High performance alloy steel
  • Precision induction hardened edges 63–65 HRC
  • ESD safe handles in 2-component synthetic material
  • Precision screw joint minimizes friction and maximizes alignment of cutting edges
  • Biospring® reduces tension throughout the working cycle of the tool and can be adjusted in three different positions
  • Cutting capacity listed is for solid copper wire
  • Burnished finish

Specifications

Cutting
Head typeMicro Tip 10°
Cut resultFlush
Cutting capacity0.1–0.6 mm / 0.004–0.024 in
Material, ESD & Origin
ResistivityDissipative
HandleErgo
Country of originSpain
Dimensions & Weight
Length149 mm / 5.9 in
Head height22.3 mm
Head width10.6 mm
Head thickness7 mm
Head sizeXS
Weight69 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-RX8233A (current) Flush XS 0.1–0.6 mm / 0.004–0.024 in ✓
59-RX8234A Flush XS 0.05–0.4 mm ✓ View →
59-RX8237A Flush XS 0.1–0.5 mm / 0.004–0.02 in ✓ View →
59-RX-8149 Flush S 0.1–0.6 mm / 0.01–0.02 in ✓ View →
59-RX-8151 Flush M 0.2–1.6 mm / 0.01–0.06 in ✓ View →
59-RX-8164 Flush L 0.3–2.0 mm / 0.01–0.08 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Installation & Care Warranty Statement
