Lindström

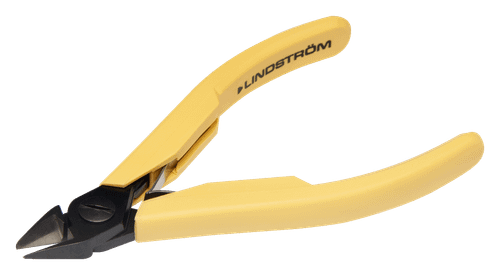

Ergo™ Flush Precision Cut Diagonal Cutter with Tapered Head 0.3-2 mm

ESD-SAFE
$132.50
Mfr Part NoRX-8164
SKU59-RX-8164
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for assembly work where accessibility is a consideration
  • Developed according to the ERGO® process for a comfortable and effective grip in all situations
  • Material: High performance alloy steel
  • Precision induction hardened edges 63–65 HRC
  • ESD safe handles in 2-component synthetic material
  • Precision screw joint minimizes friction and maximizes alignment of cutting edges
  • Biospring® reduces tension throughout the working cycle of the tool and can be adjusted in three different positions
  • Cutting capacity is listed for solid copper wire

Specifications

Cutting
Head typeTapered
Cut resultFlush
Cutting capacity0.3–2.0 mm / 0.01–0.08 in
Material, ESD & Origin
ResistivityDissipative
HandleErgo
Country of originSpain
Dimensions & Weight
Length147 mm / 5.8 in
Head height16 mm / 0.63 in
Head width16 mm / 0.63 in
Head thickness8 mm / 0.31 in
Head sizeL
Tip width1.6 mm / 0.06 in
Weight95 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-RX-8164 (current) Flush L 0.3–2.0 mm / 0.01–0.08 in ✓

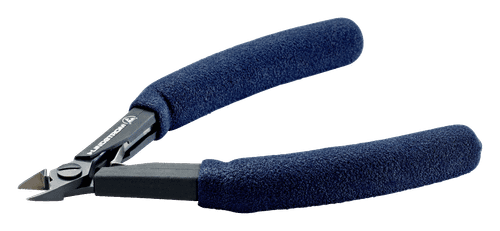

59-8164 Flush L 0.3–2.0 mm / 0.01–0.08 in ✓ View →
59-HS8164 Flush L 0.3–2.0 mm / 0.01–0.08 in ✓ View →
59-RX-8143 Micro-Bevel® S 0.2–1.25 mm / 0.01–0.05 in ✓ View →
59-RX-8144 Flush S 0.1–1.25 mm / 0.004–0.05 in ✓ View →
59-RX-8145 Ultra-Flush® S 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-RX8153 Micro-Bevel® M 0.3–1.6 mm / 0.01–0.06 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Installation & Care Warranty Statement
