Lindström

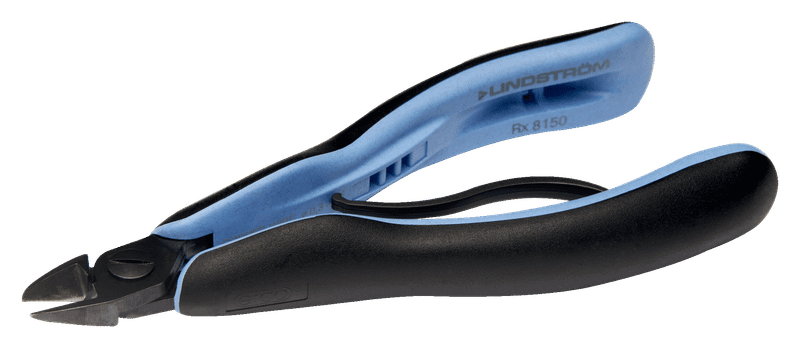

Ergo™ Flush Precision Cut Diagonal Cutter with Oval Head 0.2-1.6 mm

ESD-SAFE
$103.00
Mfr Part NoRX-8151
SKU59-RX-8151
Authorized Lindström Distributor Genuine factory-new stock
In Stock
Request a Quote
Shipping calculated at checkout
Expert Support
Securely Packaged
Tracking Provided
30-Day Returns

Overview

  • Ideal for cutting leads, jewelry wire, and general assembly applications
  • Two-component ESD safe Ergo™ handles: Thermoplastic surface on tough polypropylene provides superior grip
  • Material: High performance alloy steel
  • Precision induction hardened cutting edges 63–65 HRC
  • Micro-Touch™: The shape of the handles makes it possible to control and rotate the pliers between thumb and index finger for precision work
  • Precision screw joint minimizes friction and maximizes alignment of cutting edges
  • Biospring® reduces tension throughout the working cycle of the tool and can be adjusted in three different positions
  • Cutting capacity is listed for solid copper wire
  • Burnished finish

Specifications

Cutting
Head typeOval
Cut resultFlush
Cutting capacity0.2–1.6 mm / 0.01–0.06 in
Material, ESD & Origin
ResistivityDissipative
HandleErgo
Country of originSpain
Dimensions & Weight
Length138 mm / 5.43 in
Head height13 mm / 0.51 in
Head width12.5 mm / 0.49 in
Head thickness6 mm / 0.24 in
Head sizeM
Tip width1.2 mm / 0.05 in
Weight73 g

In this series

Each model in this series is its own page.

Model Cut result Head size Cutting capacity ESD View →
59-RX-8151 (current) Flush M 0.2–1.6 mm / 0.01–0.06 in ✓
59-8151 Flush M 0.2–1.6 mm / 0.01–0.06 in ✓ View →
59-HS8151 Flush M 0.2–1.6 mm / 0.01–0.06 in ✓ View →
59-RX-8130 Micro-Bevel® XS 0.2–1.0 mm / 0.01–0.04 in ✓ View →
59-RX-8131 Flush XS 0.1–1.0 mm / 0.004–0.04 in ✓ View →
59-RX-8132 Ultra-Flush® XS 0.1–0.8 mm / 0.004–0.03 in ✓ View →
59-RX-8140 Micro-Bevel® S 0.2–1.25 mm / 0.01–0.05 in ✓ View →

Documents & Downloads

Datasheet ESD-Safe Certificate Ultra-Flush® Data Sheet Installation & Care Warranty Statement
