Description

Product Overview

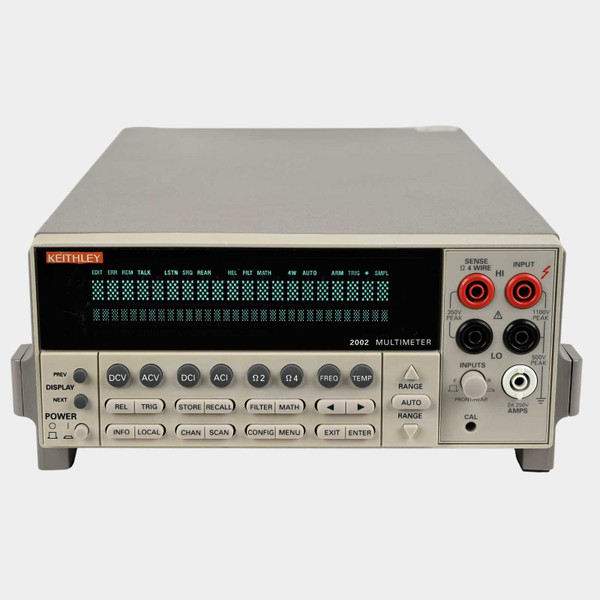

The Keithley 2002 is a high-performance 8.5-digit digital multimeter engineered for applications that require exceptional sensitivity, accuracy, and measurement throughput. It not only delivers performance specifications usually associated only with instruments that cost thousands more, but it offers a broad range of functions not typically available from DMMs. With 1 nV DCV sensitivity and a basic accuracy of 0.0006%, this DMM also offers 18 measurement functions. For greater flexibility, a built-in card slot on the rear panel allows an additional multiplexer card for multi-point measurement applications.

The Model 2002 is known for very high resolution and broad functionality, offering a powerful measurement platform in a bench instrument format. It is well suited for precision bench work, automated test systems, design verification, and metrology-oriented environments.

Key Features of the Keithley 2002

• True 8.5-digit resolution for high-precision measurement applications
• High sensitivity for low-level signal measurements
• High basic accuracy suitable for demanding bench and system test work
• Broad measurement function set for versatile lab and production use
• High throughput performance for automated test and repetitive measurements
• Advanced AC measurement capabilities (including AC and AC+DC measurement modes)
• Multiple measurement display capability (application dependent)
• Keysight/HP/Agilent 3458A emulation mode
• Rear plug-in slot for optional switch/scanner cards (card not included unless stated)
• GPIB (IEEE-488) interface for automated system integration
• SCPI / legacy integration support for easier test system programming migration
