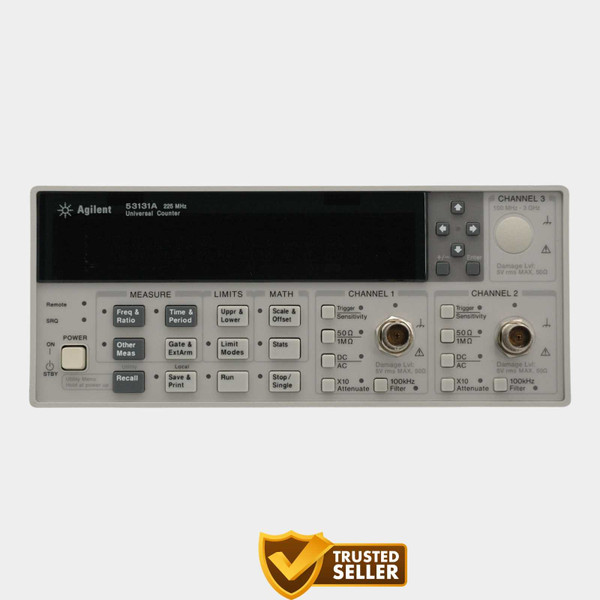

This is an Agilent/Keysight 53131A 225 MHz Universal Counter with High Stability Oven Option 010 and Rear Panel Connectors Option 060. The display is DIM but useable. Fully calibrated, includes power cord.
Price is excellent for a 53131A with HS Oven! See Product Details tab.
Description
The HP / Keysight / Agilent 53131A universal counter gives you fast, precise frequency measurements at an affordable price. These counters feature an intuitive user interface and one-button access to frequently used functions so you can make accurate measurements quickly and easily.
Real-time digital signal processing technology is used to analyze data while simultaneously taking new readings, speeding measurement throughput. The technology, developed for Keysight's high-end line of modulation domain analyzers, allows the counters to gather more data for each measurement, so you get higher-resolution measurements in a fraction of the time it takes other counters.
The 53131A universal counter offers built-in statistics and math functions so you can scale measurements and simultaneously measure and track average, min/max and standard deviation. Automated limit testing lets you set upper and lower limits for any measurement. An analog display mode lets you see at a glance whether a measurement is within pass/fail limits. The counters flag out-of-limit conditions and can generate an output signal to trigger external devices when a limit is exceeded.
The two-channel 53131A counter offers 10 digits per second of frequency/period resolution and a bandwidth of 225 MHz. Time interval resolution is specified at 500 ps. An optional third channel provides frequency measurements up to 3, 5, or 12.4 GHz. Standard measurements include frequency, period, ratio, time interval, pulse width, rise/fall time, phase angle, duty cycle, totalize, and peak voltage.
Features
- 225 MHz bandwidth (Up to 3GHz with optional 030 channel)
- 10- digit resolution with 1 s gate time
- GPIB interface and IntuiLink connectivity software standard
- Data transfer rate of up to 200 fully formatted measurements/second 15 MHz sine and square wave outputs
- Cosmetic Condition
- Good cosmetic condition. Clean inside and out.
- Functional Condition
- FAIR condition. The unit has been fully tested and calibrated.
- Functional 1
- The display brightness is DIM but usable. All keys operational.
- Functional 2
- Rear Panel Connector Option 060
- Functional 3
- Impedance on both channels and 10 MHz external reference lock verified. GPIB Operational.
- Functional 4
- FULL calibration completed and performance measurements verified. Unit is spot on to specifications.
- Items Included
- Unit as pictured, power cord (All cables and test equipment pictured not included).
