Description

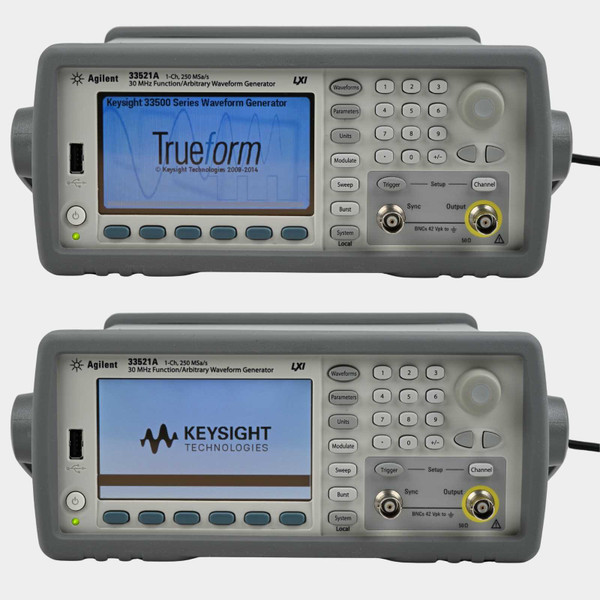

Keysight Technologies, Inc. 33500 Series function/arbitrary waveform generators offer the highest signal fidelity and implement a new breakthrough technology that provides you with the ability to generate more accurate arbitrary waveforms. With 10x better jitter than anything in their class, they offer unparalleled control of signal frequency for your most challenging measurements.

The 33500 Series expands your signaling capability with true point-by-point arbitrary waveforms that are always alias-protected for exceptional accuracy. The 33521A is first in its class to generate 30 MHz signals, including common waveforms, arbitrary waveforms and sophisticated modulated waveforms. Both models leverage proprietary technology to provide you with unprecedented input control when defining arbitrary waveforms. That control equates to the ability to define more complex point-by-point waveforms with sequencing.

Standard waveforms such as sine, square, ramp, pulse, triangle, PRBS, and Gaussian Noise, are built in. Built-in modulations include AM, FM, PM, FSK, BPSK, Sum, and PWM. Built-in ARB waveforms include Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc.

The 33521A has the ability to create two-tone signals for dual-tone multi-frequency (DTMF) signal applications used in telecommunication device test.

Key Features

• 30 MHz sine, square, and pulse bandwidth cover more applications
• < 40 ps jitter and less than .04% total harmonic distortion for more precise signals
• 250 MSa/s, 16-bit sampling rate for higher time-resolution arbitrary waveforms
• True point-by-point arbitrary waveforms with sequencing for more accurate representation ofuser-defined signals
• 1 MSa waveform memory standard
• Large, color, graphical display allows for simultaneous parameter setup and signal viewing/editing for intuitive operation
• USB 2.0 and LAN connectivity, GPIB is optional.

Get the Agilent 33521A Series Waveform Generator!
